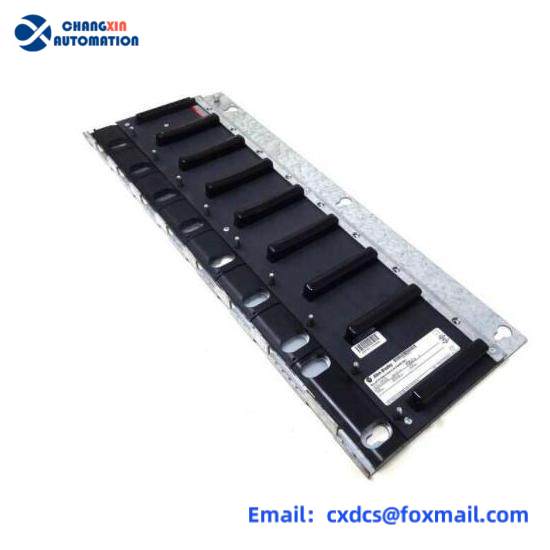

Allen-Bradley 2094-PRS8 AC Drive – 8 Axis Power Rail

Dimensions:632.5 mm (24.9 in) L x 25.4 mm (1 in) D

Module Capacity:1 IAM, 7 Additional

Weight:9.7 lbs (4.43 kg)

Applicable Drive Systems:230 or 460 Volt

Compatible Modules:Up to 8 Axes

Torque Limit:Up to 5.08 N•m (45.0 lb•in)

    The Allen-Bradley 2094-PRS8 Power Rail is a high-performance component engineered for industrial environments, providing a modular platform for 8-axis control. Its compact design measures 632.5 mm in length, 25.4 mm in depth, and 25.4 mm in diameter, making it a space-efficient choice for modern automation setups.

    This power rail is specifically tailored for use in 230 or 460 Volt drive systems, ensuring compatibility with a wide range of industrial applications. It features one IAM module slot alongside seven additional slots for expansion, allowing for flexible configuration based on the specific needs of your operation.

    Constructed with durability in mind, the Allen-Bradley 2094-PRS8 utilizes robust materials to withstand the rigors of industrial environments. Its modular design facilitates easy installation and maintenance, minimizing downtime and maximizing operational efficiency.

    For optimal performance and safety, it’s recommended to use M6 Metric (1/4×20) bolts for mounting and to apply torque up to 5.08 N•m (45.0 lb•in). The included braided strap should be securely attached to the ground grid or power distribution ground, ensuring a reliable connection and protection against electrical hazards.

    To ensure the longevity of the system, avoid powering up the drive system until all modules have been properly installed on the rail. Additionally, separate the enclosure from the drive system during welding, cutting, drilling, or tapping activities to prevent debris from entering the circuitry and causing damage to sensitive components.
