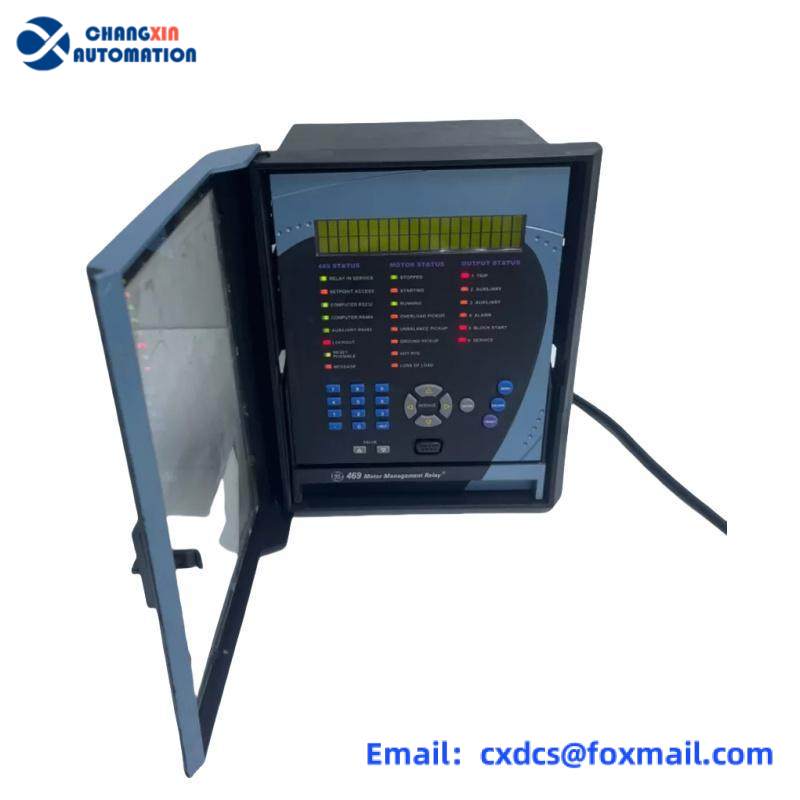

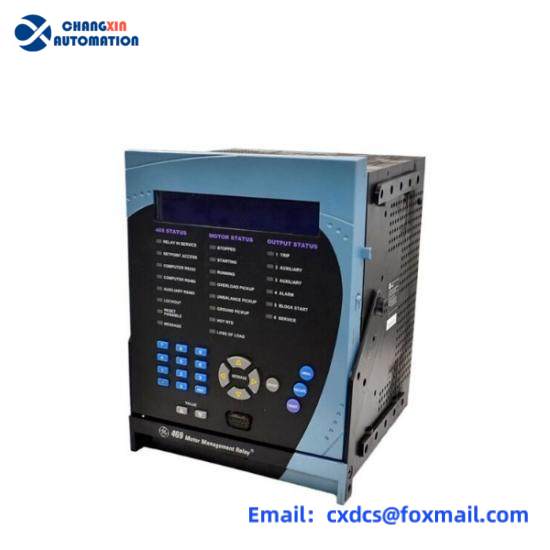

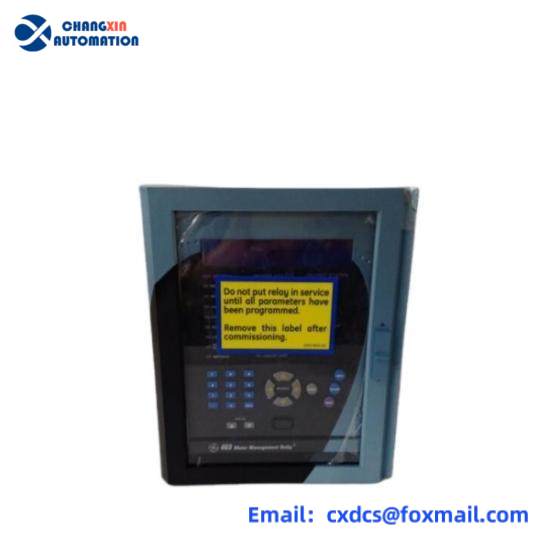

GE SR469-P5-HI-A20 – Advanced Motor Management Relay for Industrial Control Systems

Product Model:469-P5-HI-A20

Manufacturer:General Electric

Voltage Range DC:90 to 300 VDC

Voltage Range AC:70 to 265 VAC

Frequency Range:48-62 Hz

Phase Current Inputs:5 A phase CT secondaries

Analog Outputs:Four (4) 4 to 20 mA analog outputs

Protection Level:Enhanced front panel, conformal coating

Enclosure Rating:20-X

Overvoltage Category:II

Insulation Voltage:300 V

Pollution Degree:2

Temperature Inputs:Multiple RTD inputs (100 ohm Nickel, 120 ohm Nickel, 10 ohm Copper, 100 ohm Platinum)

Ports:3 (Front RS232, Rear Com RS485 and Aux RS485)

Software Compatibility:EnerVista 469 Setup

Weight Before Packaging:Less than 15 lbs

    The GE SR469-P5-HI-A20 is equipped with advanced monitoring capabilities, including multiple RTD inputs for precise temperature measurement, which helps in determining the actual temperature and the hottest point in motor systems. This feature ensures optimal performance and safety, preventing overheating and potential failures.

    Designed with an enhanced front panel, the relay offers a clear and intuitive interface, allowing for easy configuration and operation. Its robust construction withstands harsh industrial environments, ensuring reliable performance under varying conditions.

    This motor management relay supports 5CT secondaries, providing versatility for different motor control scenarios. It’s compatible with a wide range of motor types and can be easily integrated into existing systems, facilitating seamless installation and maintenance.

    With its compact yet powerful design, the GE SR469-P5-HI-A20 reduces downtime and enhances operational efficiency. Its ability to handle high voltages and currents makes it suitable for heavy-duty applications where reliability is critical.

    Manufactured by General Electric, a leader in industrial solutions, this relay is backed by extensive research and development, ensuring top-quality performance and longevity. It’s an ideal choice for engineers and maintenance teams seeking advanced motor management technology.
